CONTINUE_POLYLINE_MULTILINE_v2_03

Command: CONTINUEPL

This program allows user to continue drawing Polyline, 2dPolyline, 3dPolyline, MultiLine or Line starting from selected end. In effect the user gets an object lengthened by the segments he adds. Works also in UCS. When user chooses to close polyline while drawing, program adjusts last segments width to match botch start and end point.

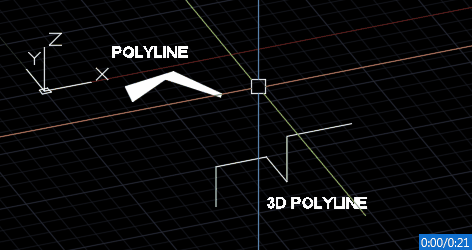

Examples (with short command aliases):



Version history:
1.00 - 20.10.2017 - first release
[...] - misc updates
2.00 - 17.05.2019 - updated error trappper, corrected source object properties extraction, new 3dentsel and getaecbosmode fucntion definition, corrected code for multilines, added "close" option
2.01 - 20.03.2020 - corrected restoring variables function, fixed bugs with 2dpolyline, fiexd restoring ucs for multilines
2.01 - 20.03.2020 - corrected restoring variables function, fixed bugs with 2dpolyline, fiexd restoring ucs for multilines
2.02 - 28.07.2020 - fixed bug with unknown GET_AECBOSMODE command
2.03 - 23.07.2022 - updated GET_AECBOSMODE definition, fixed bug with 3D SNAPS


File format:
.FAS


Compatibility:
-Autocad R14 and leter versions


Remarks:
-The application comes with the long command names listed above. To create your own short aliases for these commands, go to ACAD.PGP file or Menu Manage->Customization->Edit aliases->Edit Aliases. Command aliases used in video-example: CPL for CONTINUEPL


DEMO:
-Demo version is limited to 2 runs and valid for one day. Platform: Windows.

 CONTINUE_POLYLINE_MULTILINE_v2_03_DEMO.FAS

Sample DWG:
SAMPLE_DWG_2007_CONTINUE_PL_ML_v1_03.DWG


Price 3 USD

1 comment:

  1. hi, I have a issue with this demo.fas file just after load I try to execute and it's appear this on autocad 23 : Commande: CONTINUEPL
    20230829
    ; erreur: type d'argument incorrect: streamp nil

    ReplyDelete
