SELECT_CROSSING_POLYLINE_v1_02.................free

Command: SELECTCROSSINTGPOLYLINE

Selects objects inside or crossing polyline. Operates in Topview with LWpolyline.



Code:

;;; ================================================
;;;        SELECTCROSSINGPOLYLINE_v1_02.LSP
;;;
;;;        Written by Andrzej Kalinowski,     www.autolisps.blogspot.com
;;;        v1.00 - 27.01.2019
;;;        v1.01 - 08.07.2022 - fixed bug with highlightning objects on locked layers.
;;;        v1.02 - 30.03.2025 - program adjusted to work with rotated UCS.
;;;
;;;        Command: SELECTCROSSINGPOLYLINE -
;;;                Selects objects inside or crossing polyline. Operates in Topview with LWpolyline.
;;; ================================================
(defun c:SELECTCROSSINGPOLYLINE ( / sset2  obj1  lst1  i1  coords1  i2  curobj1)
    ;-----------------------------------------
    ;object selection
    ;-----------------------------------------
    (setq obj1 nil)
    (prompt "\nSelect Polyline (LW): ")
    (while (= obj1 nil)
        (setq obj1 (ssget "_:S+."))
        (if (= obj1 nil)
            (princ "\nWrong object");then
            (if (> (sslength obj1) 1);else
                (progn
                    (princ "\nSelect only one object")(princ)
                    (setq obj1 nil)
                );progn
                (if (not  (member (vlax-get (vlax-ename->vla-object (ssname obj1 0) ) 'ObjectName) (list "AcDbPolyline"  ) )  );not
                    (progn
                        (princ "\nSelect only one object")(princ)
                        (setq obj1 nil)
                    );progn
                );if
            );if
        );end if
    );end while

    (setq obj1 (ssname obj1 0))
    ;-----------------------------------------
    (setq lst1 (list) )
    (setq coords1 (vlax-get (vlax-ename->vla-object obj1 ) 'Coordinates) )
    (setq i1 0 )
    (repeat (/ (length coords1) 2)
        (setq lst1 (cons (list (nth i1 coords1) ( nth (1+ i1) coords1) )  lst1 ) )
        (setq i1 (+ 2 i1) )
    )repeat
    (vl-cmdf "_UCS" "_W")
    (setq sset2 (ssget  "_CP" lst1) )
    (vl-cmdf "_UCS" "_P")
    (ssdel obj1 sset2)
    (vl-cmdf "_move" ) (command) ; regenerates highlited selection
    (SCP_HIGHLIGHSEL sset2)

    (princ (strcat  "\nTotal selected objects: " (itoa (sslength sset2) ) ) )
    (princ)
);defun
;;; ================================================
;                        SBT_HIGHLIGHSEL
;;; ================================================
;highlights selectionset
(defun SCP_HIGHLIGHSEL ( get_sset / i9  MyLayers2)
    (setq i9 0)
    (setq MyLayers1 (vla-get-layers (vla-get-activedocument (vlax-get-acad-object) ) ))
    (repeat (sslength get_sset)
        (if (=(vla-get-lock (vla-item MyLayers1(vla-get-layer  (vlax-ename->vla-object (ssname get_sset i9))))):vlax-true )
            (if (getcname "-DWGUNITS");checks if Autocad or Gstarcad. In Gstarcad dwgunits is unavailable. This condition prevents error in Gstarcad: ActiveX server returned an error: Exception occurred.  We have to redraw the selection instead of invoking highlight methode.
                (vlax-invoke-method (vlax-ename->vla-object (ssname get_sset i9)) 'Highlight :vlax-true);autocad
                (redraw (ssname get_sset i9) 3);gstarcad
            );if
            (vlax-invoke-method (vlax-ename->vla-object (ssname get_sset i9)) 'Highlight :vlax-true)
        );if
        (setq i9 (1+ i9))
    )
    (sssetfirst nil)
    (sssetfirst nil get_sset)
);defun

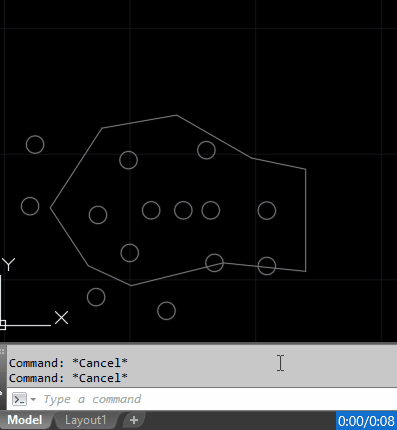

Example:

Version history:
1.00 - 27.01.2019 - first release
1.01 - 08.07.2022 - fixed bug with highlightning objects on locked layers.
1.02 - 30.03.2025 - program adjusted to work with rotated UCS.

File format:
.FAS

Compatibility:
-All Autocad versions

Remarks:
-The application comes with the long command names listed above. To create your own short aliases for these commands, go to ACAD.PGP file or Menu Manage->Customization->Edit aliases->Edit Aliases

Download file:
SELECTCROSSINGPOLYLINE_v1_02.FAS
